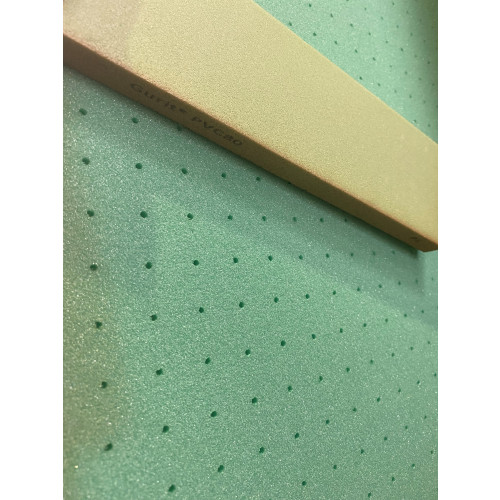

Gurit® PVC Foam is a closed cell, cross-linked PVC foam. It provides superior strength to weight ratio for all composite applications.

Other key features of Gurit® PVC include outstanding chemical resistance, negligible water absorption, and excellent thermal insulation capabilities. It is compatible with most common resin systems including epoxy, polyester and vinylester.

Typical Applications

Gurit® PVC is an all purpose core and can be used in decks, hull sides, bulkheads, floors and wind turbine blade shells.

Basic information

• Sheet size - 1020 mm x 2180 mm
• Foam Colour - Green
• Available thickness - 3 mm - 72 mm
• Finishing - Pin Holed

Other Finishing options

• PL - Plain
• PH - Pinholed
• CS - Scrim Backed
• DC - Double Cut
• VIC - Infusion Cut
• VIC + PH - Infusion Cut with pinholes

For full explanation structural properties and  finishing options see the core guide and data sheet in technical documents or talk to your technical representative
